Bravo Checklist: Connecting Workstations

by  Sam C. Chan


April 20, 2006

This is a checklist for end-user or DIFA when connecting a workstation to the network, after it returns from being serviced, or is newly purchased.

Connect the following items:
  1. Power cord
  2. Keyboard (PS/2 or USB)
  3. Mouse (PS/2 or USB)
  4. Monitor
  5. Network cable

Optional:

  1. Speakers & Microphone
  2. Printers
  3. Scanners

Detailed notes and tips:

  • All USB ports are interchangeable
  • PS/2 plugs have very delicate pins. Rotate gently to feel for the correct orientation before pushing in. Don't force it! Color codes: Keyboard (Purple), Mouse (Green).
  • Monitor plugs are D-shape and "keyed," but it's still possible to reverse if you force it. Exercise caution. Feel & push gently. Do not force it!
  • When plugging in network cable, be sure the plastic latch snapped with a click, so that it's securely locked in.
  • Speakers go into the Green jack. Microphone goes into Pink jack.

Connector Photos:

1 2 3
4 5 6
7 8 9
10  11 12

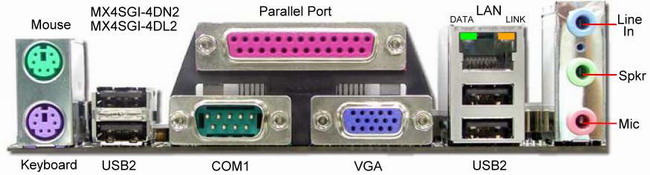

Ports found at the back of a typical workstation:
