Bravo Analysis: CRT vs. LCD Monitors

by  Sam C. Chan

First Published: July 14, 2002
Last Updated: September 10, 2007

This revision on 9/10/07 introduces 2 items:

  1. LCD has just achieved cost parity with CRT, after 15 years on the market.

  2. Addressing the issue of aspect ratio: "wide vs. standard"

    • Given the same diagonal size, wide displays have less screen area. e.g. HD movie format (16:9 ratio) represents a 12.3% loss in area, compared to standard (4:3). This explains why wide version is always $15 ~ $40 cheaper than standard version of the same line and same "size."

    • For business use, wide display of 17" or less is not recommended. You will need the extra vertical space more than the extra width. At 19" and above, it's OK to go for wide, because there is sufficient vertical resolution. A 24" display (wide or standard) works perfectly with 2 side-by-side documents.

    • Monitors are being produced in wide configuration only at 22" and above.

    • The impression of "wide" as a gain is but a fallacy. In reality, the gain/loss boils down to the amount of time spent watching a widescreen movie (wasted vertical gaps), versus the amount of time viewing documents (wasted horizontal gaps).

    • Optimize purchase decisions according to your intend usage. Keep in mind: To compensate for wide, you'll need to add approx. 1.4" to the diagonal size, to achieve the same screen area.

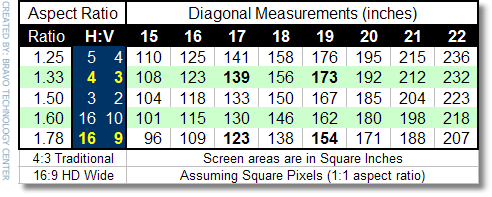

For detailed break-down of horizontal/vertical dimensions vs area: see this chart

End of revision, on to the original article...

Contrary to widespread belief, LCDs are neither superior nor inferior to CRTs. Each has its own strengths and weaknesses. Like many things, it's not better or worse, just different, not unlike Chainsaw vs Butter Knife.

This comparison is based on high quality CRT and LCD displays. With the abundance of inexpensive high quality models, there's absolutely no reason to concern ourselves with the low-end models, and their associated issues.




  • lower cost
  • better overall display quality
  • better display features
  • flexible resolutions without jaggie pixel distortion
  • wide viewing angle
  • superior brightness & contrast
  • smoother slanted lines
    (natural anti-aliasing)
  • infinite color depth
  • less space & weight (less freight cost)
  • lower power consumption & heat (USD $4 savings annually for typical user)
  • perfectly flat, less glare from overhead lights
  • LCDs with horizontal triads excel in italic fonts (slight vertical slant), if properly configured with ClearType
  • higher power consumption
  • bulky (depth) & heavy
  • very slight curve
  • radiation (virtually non-issue)
  • mis-convergence (only prominent on low-cost or very old units)
  • susceptible to magnetic fields
  • color distortion in humid environment
  • more expensive
  • severe pixel distortion due to translation, at any resolution other than the native resolution (highest).
  • very narrow viewing angle
  • poor brightness & contrast
  • poor color depth
  • poor color accuracy - severe swing of Gamma value, and sudden drop of saturation, with slightest deviation in vertical viewing angle.*
  • uniformity imperfections, especially in edges
  • obvious jaggie on slanted lines (no natural anti-aliasing)
  • ghosting with fast moving images due to slow cell response rate
  • manufacturing defects: most units have some defective pixels.
  • pixel jitters, if used with analog signal (non DVI-I) resulting very noticeable distortion/fuzziness.
NOTE: Please don't confuse flat with thin. Flat screen refers to CRT with a flat surface. All high-end CRTs are flat screens, while low-end CRTs have prominent curvature. LCDs are thin panels, often referred to incorrectly as "flat panels."
"Flat" is not the differentiating factor. "Thin" is.

* While it's not of major concern to the casual user, this characteristic (flaw) makes it very dangerous (frequent mistakes/misjudgments) for use by series photo editors. To mitigate the problem, increase the viewing distance as much as possible to reduce viewing angle variation. Be mindful to assume a posture to achieve perfect viewing angle, while performing color operations. It affects subtle saturation most severely and is not uniform across hue spectrum.
